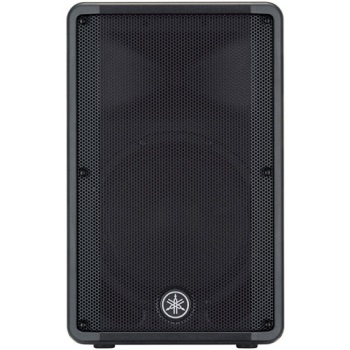

Yamaha DBR12 12" Powered Two-Way Speaker

12" Two-Way Self-Powered Speaker

The Yamaha DBR 12 powered speaker features 1000 dynamic watts in an enclosure that only weighs 35lbs! A 12" woofer with ferrite magnet and a 1.4" compression driver deliver a tuned frequency response of 52Hz-20kHz (+/-10dB) . With a wide coverage pattern, this speaker works well as a main speaker or a monitor. Yamaha's FIR-X tuning, developed for their DSR and DXR powered loudspeakers, is featured in all DBR series powered loudspeakers, bringing the acclaimed D-Contour processing presets: FOH/Main, Monitor, or off.

Yamaha DBR12 specifications

• Powered two-way full range enclosure
• 1000 watt highly efficient Class-D amplifier
• Maximum SPL output: 131dB
• System type: self-powered 12", two-way, bass reflex
• Frequency range (-10dB): 52Hz-20kHz
• Coverage pattern: 90x60
• D-Contour presets: FOH/Main, Monitor, off
• Built-in crossover presets: 120Hz, 100Hz, off
• 3 x M8x15mm suspension points
• Standard 35mm pole cup
• Lightweight, rugged plastic
• Only 34.8lbs!
• AC current draw @ 120V: 1/8th power:0.6A






Model:	DBR12
Manufacturer:	Yamaha
